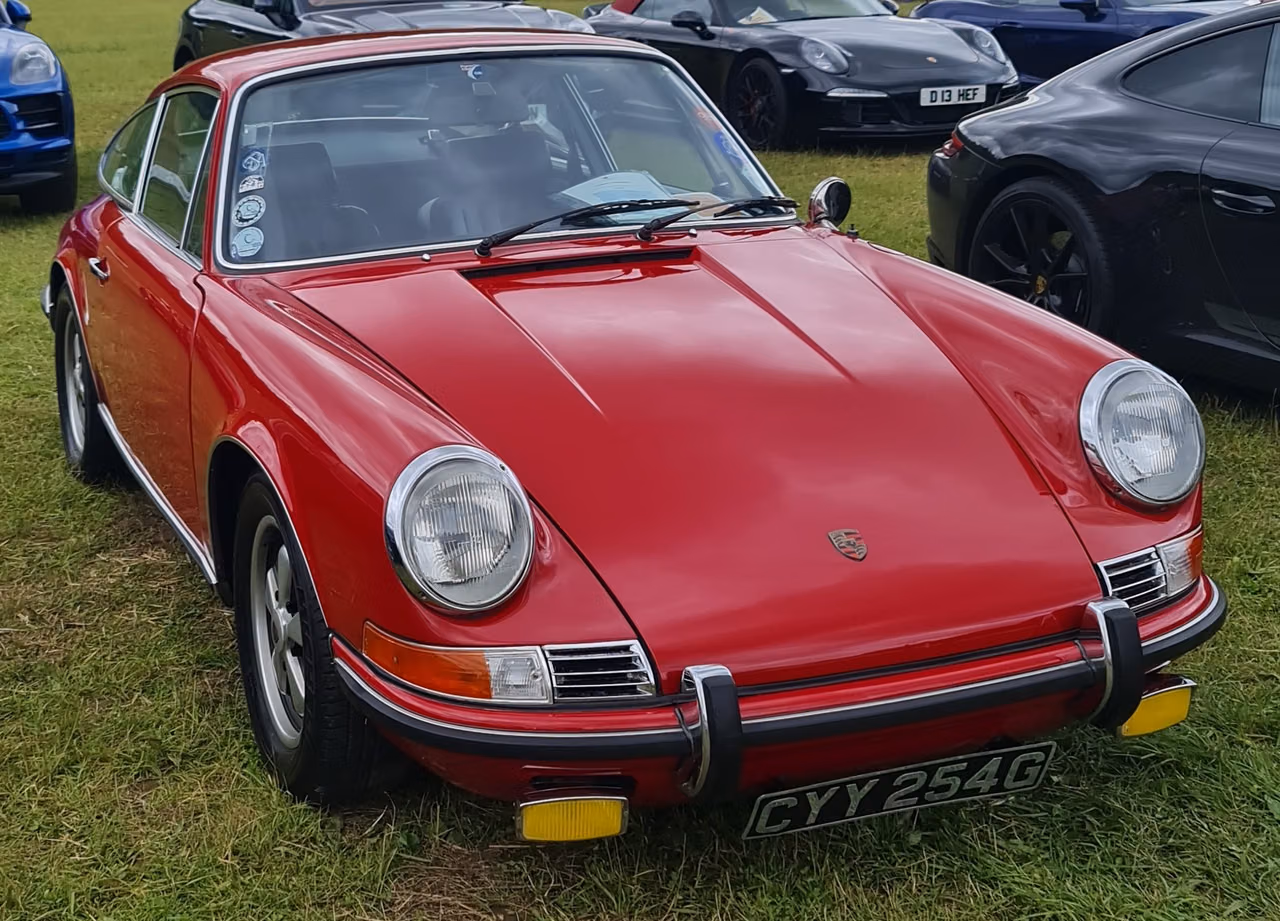

911 2.2

911 2.2

1970–1971Coupé · Targa

For MY1970 every 911 engine grew by 4 mm of bore to 2,195 cc, and the internal code switched from 901 to 911 — the transaxle, parts prefixes and engravings all changed. There was no plain base 911 in this era: the range was the carburetted 911 T, the fuel-injected 911 E and the 180 PS 911 S. Larger valves, new head gaskets and more cooling fins came with the extra displacement, and the C-series moved the front suspension mounting points 14 mm forward for lighter steering. In MY1971 the D-series added hot-dip zinc rust proofing, door side-impact beams, three-speed intermittent wipers and piston oil squirters, and production continued with the 2.2 units until July 1971.

SpecificationsSound: Porsche 911 R (1967)Edvvc · CC BY-SA 3.0 · Commons (opens in a new tab)

Unofficial fan showcase · media licensed per asset

Specification plate

Numbers as published

Every figure below is quoted from the sources listed at the foot of the page. A dash means the number was never published — it is never estimated.

Engine

2,195 cc

2.2 L) air-cooled flat-six, 84 mm bore × 66 mm stroke; carburetted (T) or Bosch MFI (E, S)

Power

180 PS

0–100 km/h

—

Not published: No official acceleration or single top-speed figure for the 2.2 family — only per-variant magazine figures

Top speed

≈210–220 km/h (130–137 mph) depending on version

Weight

1,020 kg

coupé, 911evolution); Targas about 50 kg more

Drivetrain

Rear-engine, rear-wheel drive

Transmission

5-speed manual (Typ 911) in E and S; 4-speed manual in the T; 4-speed Sportomatic optional

Production

—

Not published: Total production for the 2.2-litre range as a single number (per-variant counts are given on the T, E and S entries)

Body styles

Coupé · Targa

Torque

125 PS

T: ≈177 N·m; E: ≈191 N·m; S: ≈199 N·m

3D viewer

Look closer

Parallax pan of one photograph · no multi-angle 360° exists under a free licence

Looking for the frame sequence

Turntable sequence from frame 0
Paint

A turntable is a photograph sequence, so there is no material to tint.

Wheels
StockSportTurbo

No 3D model on file for this variant yet.

Gallery

7 views of the 2.2

Click a frame · Esc closes · ←/→ move

Watch

3 films on the 2.2

Variant-specific films first, then the curated set for the generation. Every player is an embed that loads on click.

  • Generation · The Wheel Network

    Porsche Historic Footage – Porsche 911 Prototype and Premiere at the 1963 Frankfurt Motor Show

    archival footage of the 901 Frankfurt debut that created the 911

  • Generation · 9WERKS TV

    Porsche 901 prototype: the second-oldest surviving 911 of all time!

    factory-original 901 prototype, the car Peugeot nearly stopped

  • Generation · Petrolicious

    This 1968 Porsche 911L Was Just A Dream

    series-two longhood 911L, the best of the very early 911s

Compare

Set it against its neighbours

911 S 2.21970–1971Same body, same era911 E 2.21970–1971Same body, same era911 T 2.21970–1971Same body, same era
Compact specification comparison between the 911 2.2 and 911 S 2.2, 911 E 2.2, 911 T 2.2
Spec911 2.21970–1971911 S 2.21970–1971911 E 2.21970–1971911 T 2.21970–1971
Years — identical across all cars1970–19711970–19711970–19711970–1971
Engine2,195 cc (2.2 L) air-cooled flat-six, 84 mm bore × 66 mm stroke; carburetted (T) or Bosch MFI (E, S)2,195 cc air-cooled flat-six, Typ 911/02 with Bosch mechanical fuel injection, 9.8:12,195 cc air-cooled flat-six, Typ 911/01 with Bosch mechanical fuel injection, 9.1:1, softer cams2,195 cc air-cooled flat-six, Typ 911/03, twin Zenith 40 TIN carburettors, 8.6:1
Power180 PS180 PS155 PS125 PS
0–100 km/h——0–97 km/h (0–60 mph) 7.6 s, quarter mile ≈15.5 s (stuttcars); no official 0–100 km/h figure0–97 km/h (0–60 mph) 9.5 s, quarter mile ≈16.5 s (stuttcars); no official 0–100 km/h figure
Top speed≈210–220 km/h (130–137 mph) depending on version—≈220 km/h (137 mph)≈204 km/h (127 mph)
Weight1,020 kg1,050 kg1,020 kg1,020 kg
Drivetrain — identical across all carsRear-engine, rear-wheel driveRear-engine, rear-wheel driveRear-engine, rear-wheel driveRear-engine, rear-wheel drive
Transmission5-speed manual (Typ 911) in E and S; 4-speed manual in the T; 4-speed Sportomatic optional5-speed manual or 4-speed Sportomatic5-speed manual or 4-speed Sportomatic4-speed manual only, plus optional 4-speed Sportomatic
Body styles — identical across all carsCoupé · TargaCoupé · TargaCoupé · TargaCoupé · Targa
Production—1,744 coupés and 729 Targas (stuttcars, 1970 model year)1,971 coupés and 933 Targas per stuttcars' spec box; stuttcars' text elsewhere gives 1,088 coupés and 935 Targas for 1970 — figures conflict6,544 coupés and 2,545 Targas (stuttcars)
Open the full comparison

Pairs load as /compare?a=901/911-2.2&b=901/911-s-2.2

Sources (4)

  1. Porsche 911 (classic) — Wikipedia (opens in a new tab)
  2. Porsche 911 (F-Series) Ultimate Model Guide — Stuttcars (opens in a new tab)
  3. Porsche 911 2.2 technical specifications — 911evolution (opens in a new tab)
  4. Porsche 911 E 2.2 (1970–1971) — Stuttcars (opens in a new tab)

What the sources do not settle (2)

  • No official acceleration or single top-speed figure for the 2.2 family — only per-variant magazine figures
  • Total production for the 2.2-litre range as a single number (per-variant counts are given on the T, E and S entries)
